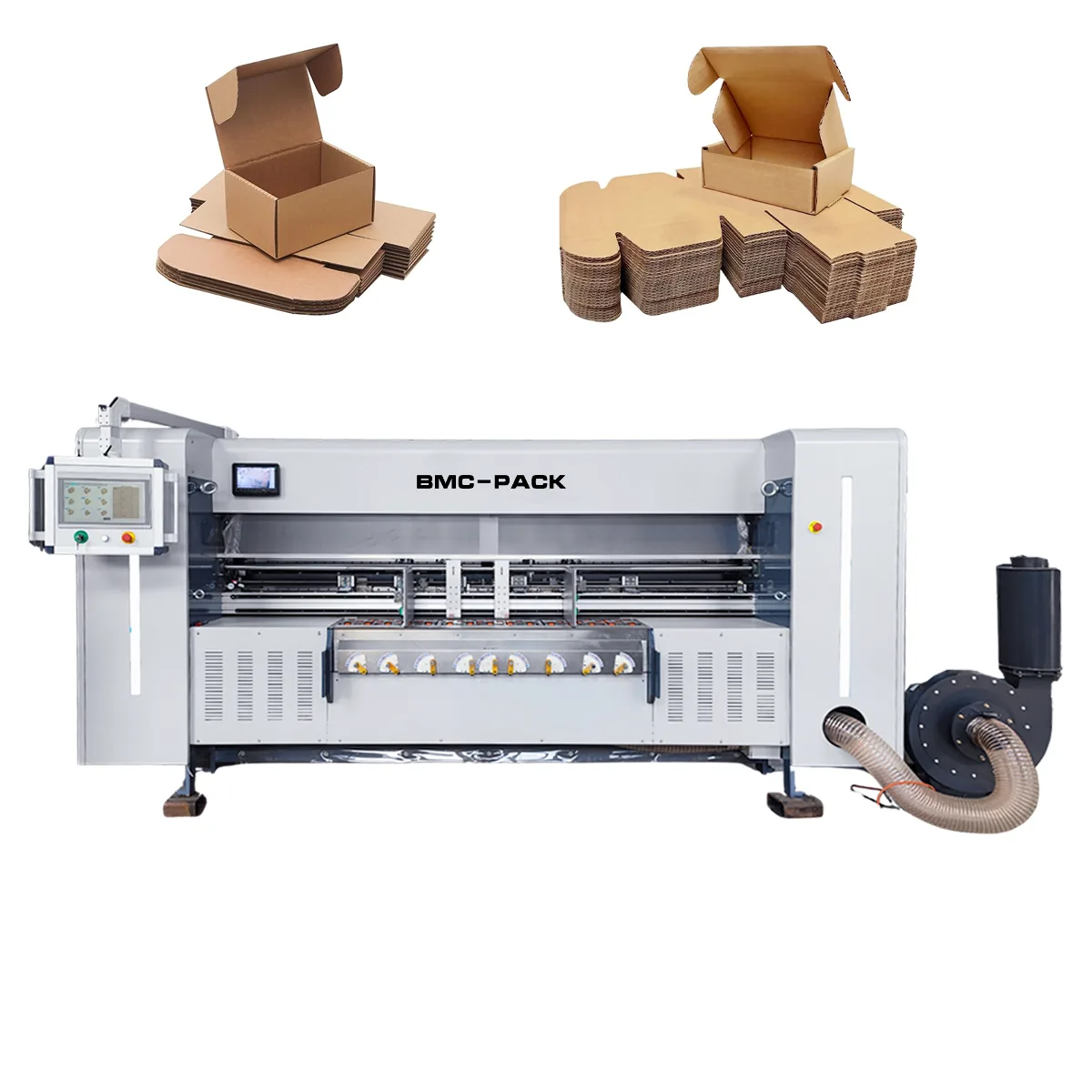

Automatic Carton Box Making Machine

Automatic Carton Box Making Machine
VIDEO
In stock

USE AND CHARACTERISTICS

  • Automatic Paper Feeding: 7.5KW high-power leading edge feeder ensures accurate cardboard feeding without slipping or trailing.
  • Automatic Slotting & Scoring: Equipped with 2 Γ— 500mm slotting knives, fully automatic adjustment. Slotting and scoring are completed in one pass with high efficiency.
  • Servo-Driven Slitting & Scoring: Independent servo-driven slitter knives and scoring wheels with pre-creasing function. Quick order change within 1–3 seconds.
  • Longitudinal Slitting & Creasing: Powered creasing wheels with tungsten carbide slitter blades deliver smooth, precise cuts. Pneumatic pressure adjustment enables complex box types to be formed in a single process.
  • Horizontal Cutting: One active rotary cross-cutting knife trims excess cardboard, eliminating the need for an additional paper cutter.
  • Vibrating Knife: Special vibrating knife allows precise cutting of irregular or customized box shapes.
Request a Quote β†’ View all in this range
Specifications

Technical specifications

SpecificationND-25000MBM
Max Paper Feed SizeUnlimited Length, Width 2500mm
Min Paper Feed SizeLength 650mm, Width 200mm
Distance (Left Slot to Right Slot)Max. 2500mm, Min 30mm
Distance (Creasing to Creasing)1–2 Creasing: 35mm; 2–3 Creasing: 150mm; 3–4 Creasing: 35mm
Knife to Knife Distance1–2: 85mm; 2–3: 55mm; 3–4: 85mm
Change Order Time≀10 Seconds
Processing Speed20 PCS/min
Standard Slotting Knife2 Γ— 500mm (Optional)
Slitting Blade Quantity4 or 6
Creasing Blade Quantity4 or 6
Cut-off Blade Quantity1
Power22kW (380V Β±10%, 50Hz)
Air Source0.6–0.7 MPa, Air Consumption: 75L/min
Overall Size LΓ—WΓ—H4080Γ—1800Γ—2030mm
Total WeightAbout 3800kg
Paper Feed Module3-Axis Leading Edge Feeding
Vibrating Knife2
FAQ

Frequently Asked Questions

The ND-25000MBM accepts an unlimited feed length with a maximum width of 2500mm, and a minimum sheet of 650mm length Γ— 200mm width β€” covering everything from small cartons to large corrugated boxes.

The ND-25000MBM runs at 20 pieces/min with an order change time of ≀10 seconds, so production lines can switch box styles quickly without long downtime.

Independent servo motors drive the slitter knives and scoring wheels with a pre-creasing function, allowing fast, precise order changes within 1–3 seconds instead of manual mechanical resets.

It comes with 2 Γ— 500mm slotting knives (optional configuration), 4 or 6 slitting blades, 4 or 6 creasing blades, 1 cut-off blade, and 2 vibrating knives for cutting irregular or customized box shapes, all powered by a 22kW motor (380V Β±10%, 50Hz).

Yes β€” installation, commissioning and operator training are included with every machine, with after-sales support available.
