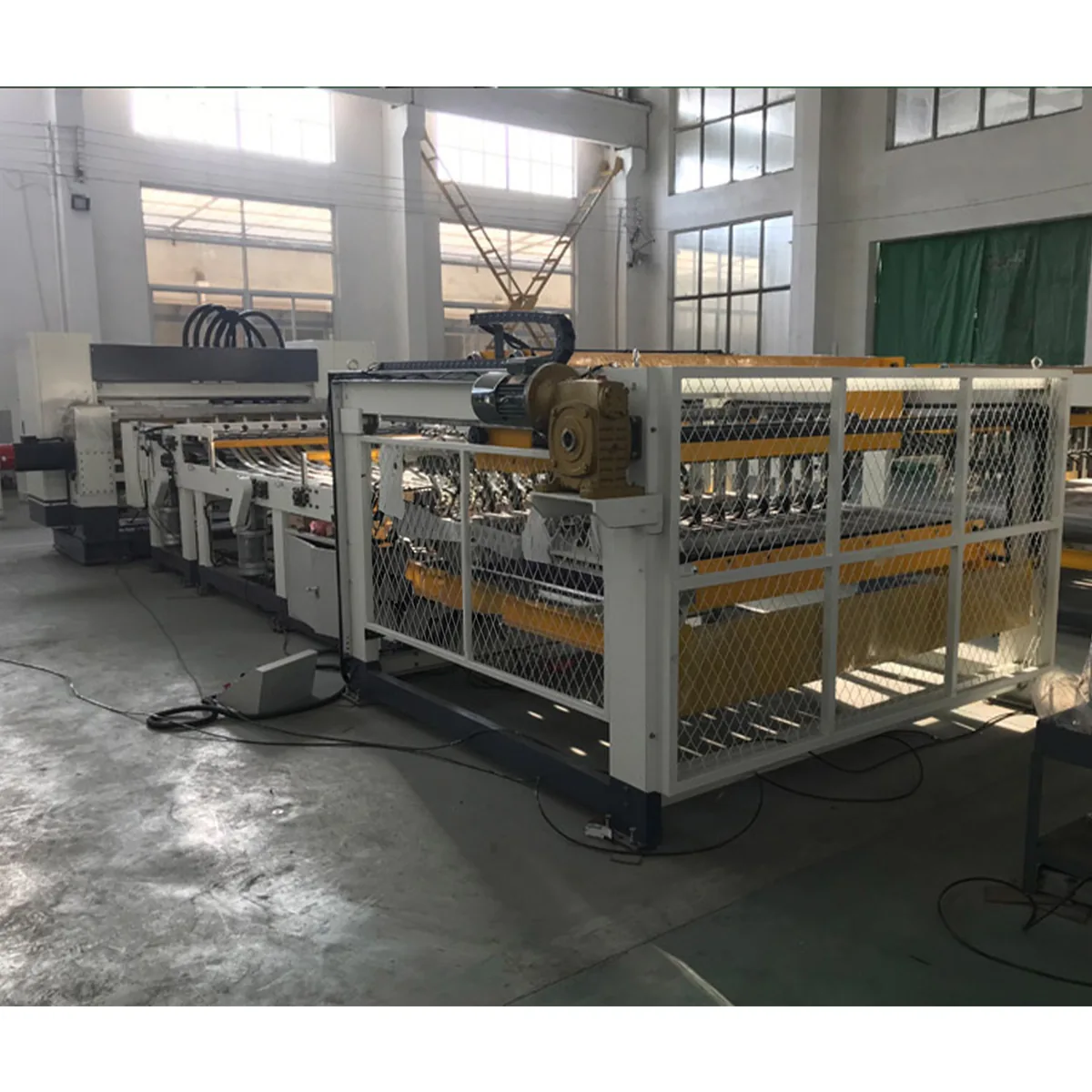

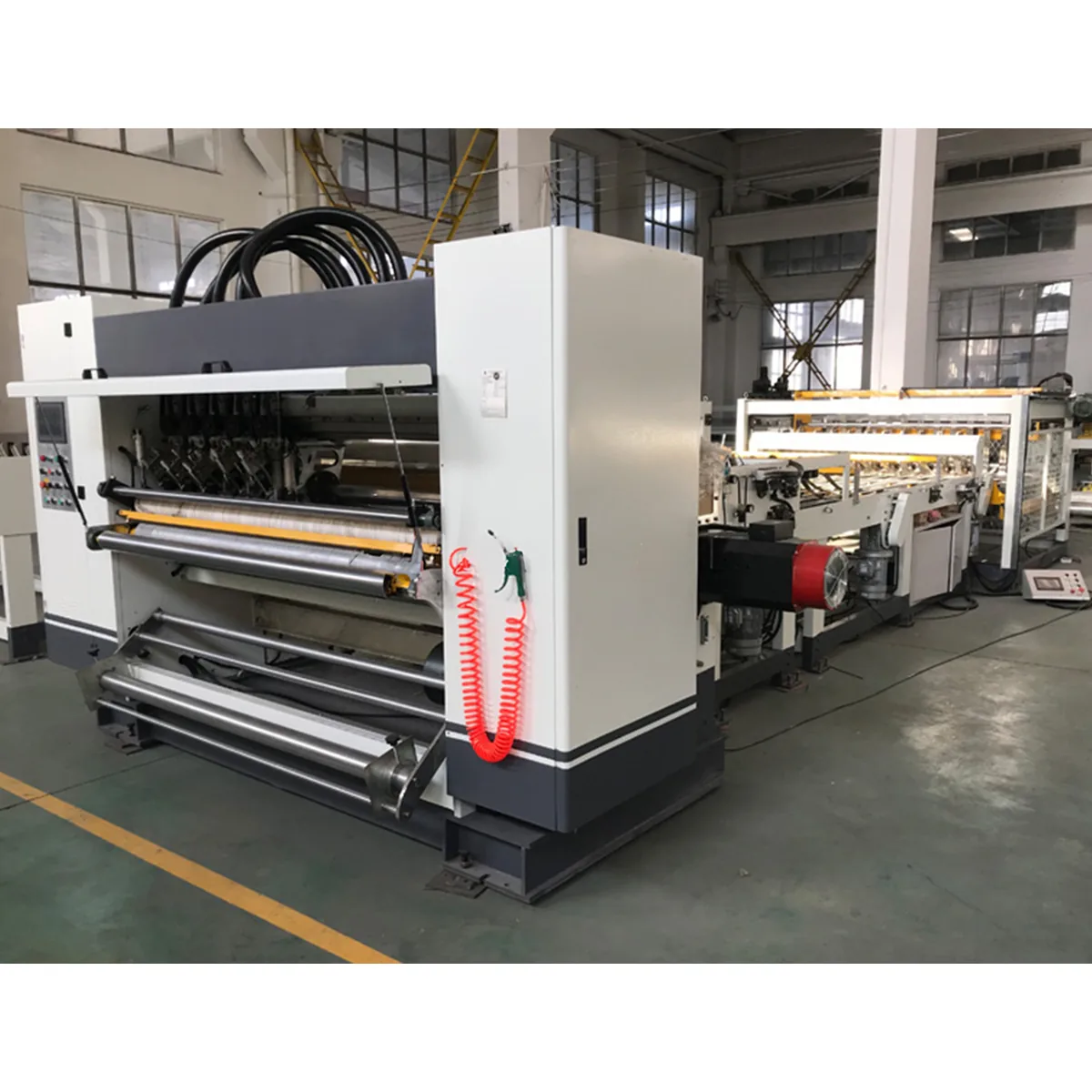

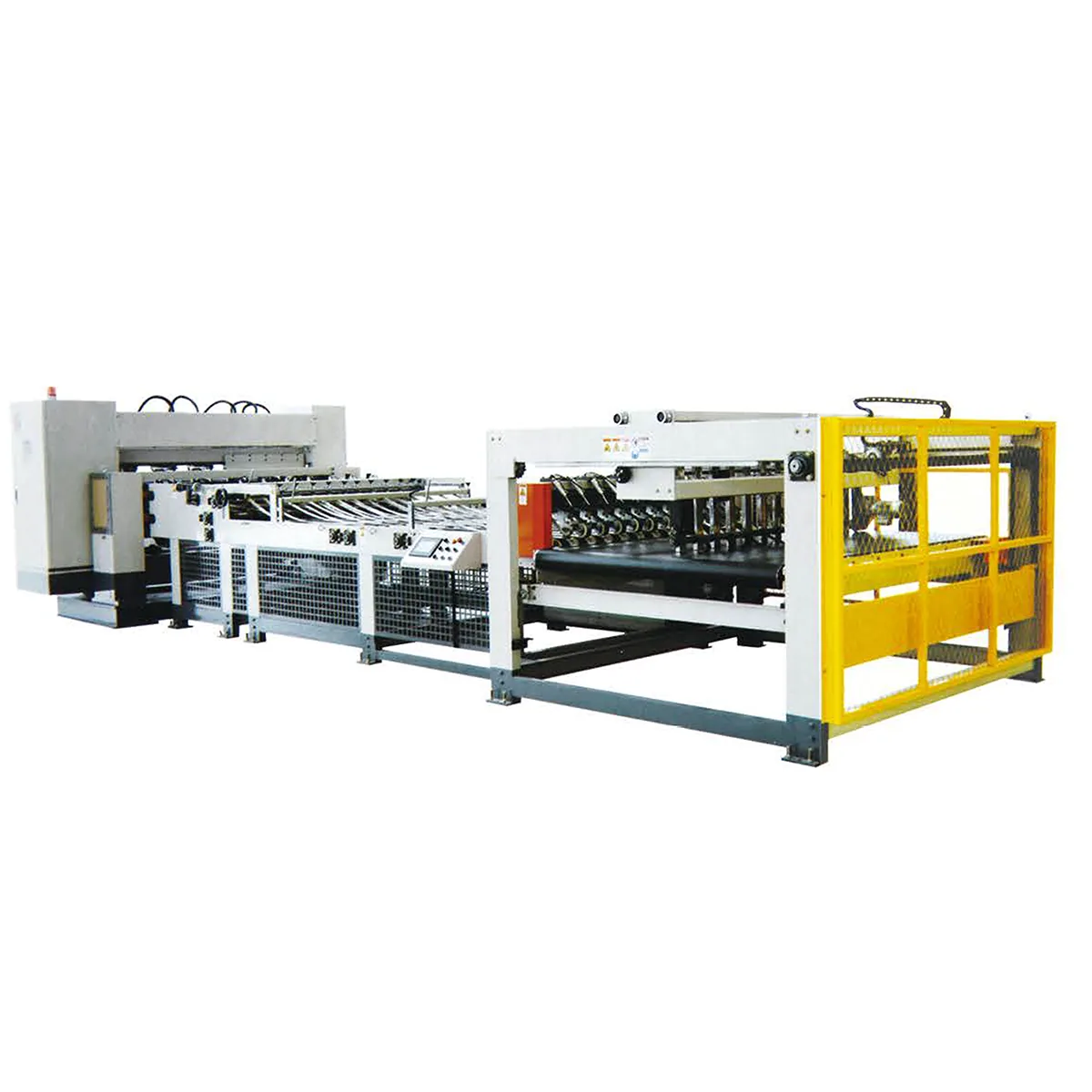

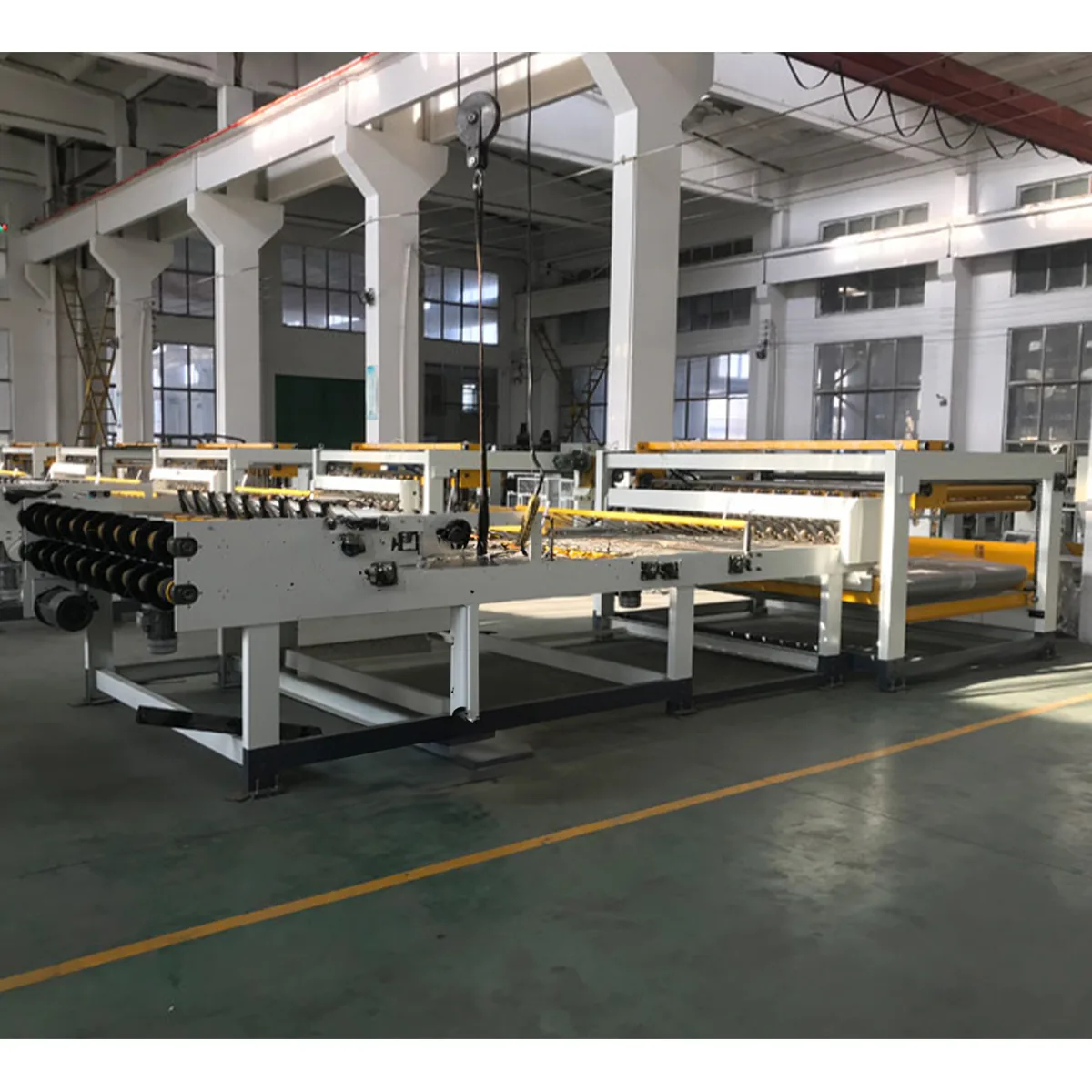

Computer 2 Ply Corrugated Cutter and Stacker

Computer 2 ply Corrugated Cutter and Stacker

• Effective width: 1600–2200mm
• Maximum speed: 150m/min
• The number of slitting knives: 5
• Minimum slitting width: 180mm
• Cutting time: 3–8s
• Blade accuracy: 0.5mm
• Cross-cutting length: 300~9999mm
• Cross-cutting accuracy: 1mm (constant speed)
• Stacking height: 250~600mm (according to customers' needs)
• Maximum carton length: 1600mm
• Constant tension cardboardboard conveying speed is strictly synchronized with the speed of the single-side machine
• Alloy steel thin knife slitting, automatic grinding knife, blade life long, cutting quality high
• Single servo control with longitudinal cutting knife, the list is fast, accurate and reliable
• Adjust the speed inverter motor and frequency converter, adjust the speed of the board
• The position of the left and right suction side of the blade should be adjusted with the edge tool
• The cross-cutting cabinet adopts high quality casting, strict aging treatment, precise processing, and long-term stable operation
• Alloy steel seamless steel tube spiral cutter shaft, economic processing, dynamic balance correction, high rigidity, small inertia
• Cross-cutting knife uses the German kobe communication servo controller
