| Specification | NDVT-920FSDCS | NDVT-1224FSDS |
|---|---|---|
| Wall board thickness | 60mm | 60mm |
| Designed Speed (pcs/min) | 350 | 300 |
| Working Speed (pcs/min) | 300 | 250 |
| Max. Feeding Size (mm) | 900Γ2000 | 1200Γ2400 |
| Min. Feeding Size (mm) | 250Γ650 | 350Γ650 |
| Skip-feeding Size (mm) | 1200Γ2000 | 1400Γ2400 |
| Standard Plate Thickness (mm) | 3.94 | 3.94 |
| Min. slotter distance POSITIVE | 150Γ150Γ150Γ150 | 150Γ150Γ150Γ150 |
| Min. slotter distance NEGATIVE | 270Γ65Γ270Γ65 | 270Γ75Γ270Γ75 |
| Max slotter depth (mm) | 300 | 320 |
| Print precision (mm) | Β±0.3 | Β±0.3 |
| Slot precision (mm) | Β±1.0 | Β±1.0 |
| Die cutting precision (mm) | Β±1.0 | Β±1.0 |
| Suitable Cardboard Thickness (mm) | 1-12 | 1-12 |

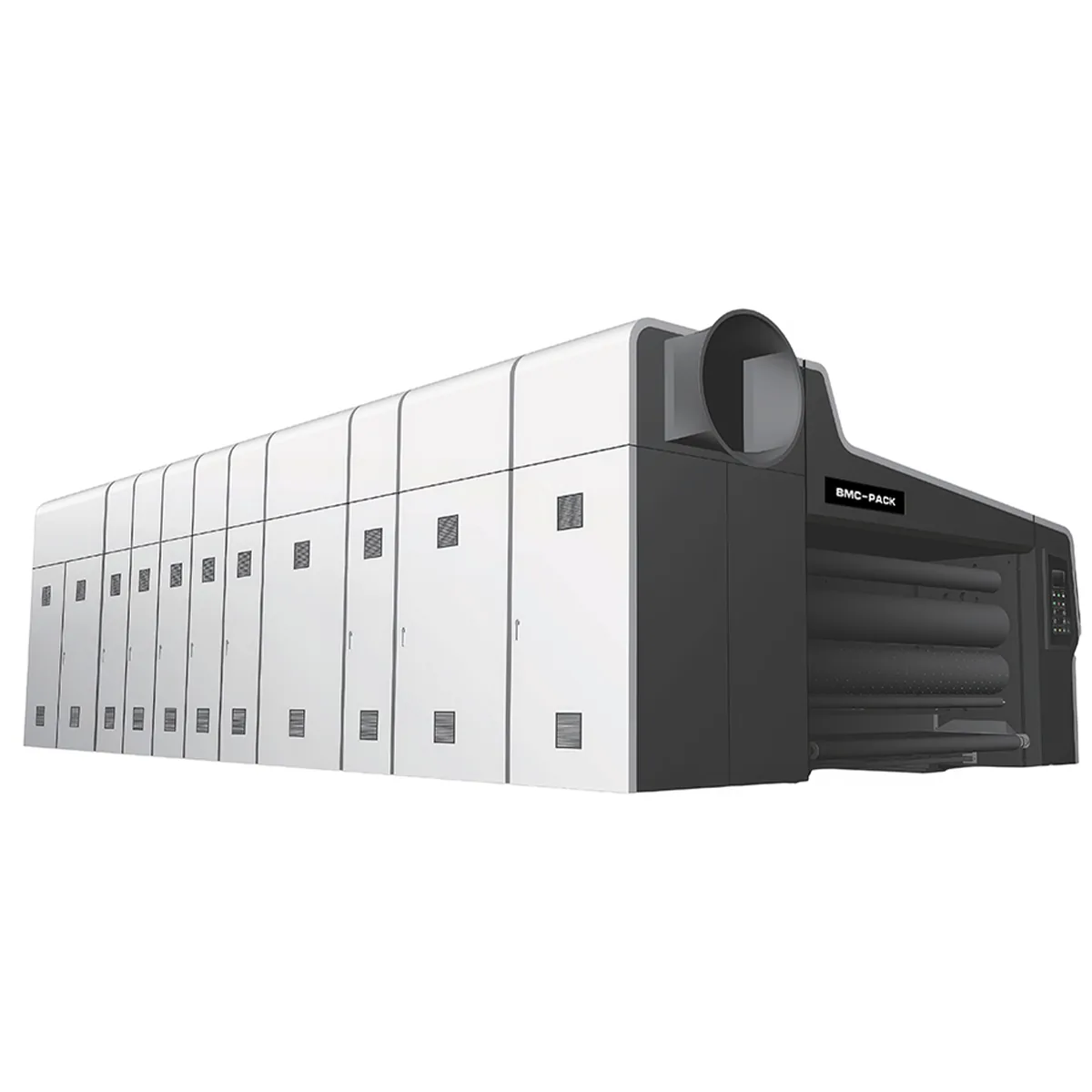

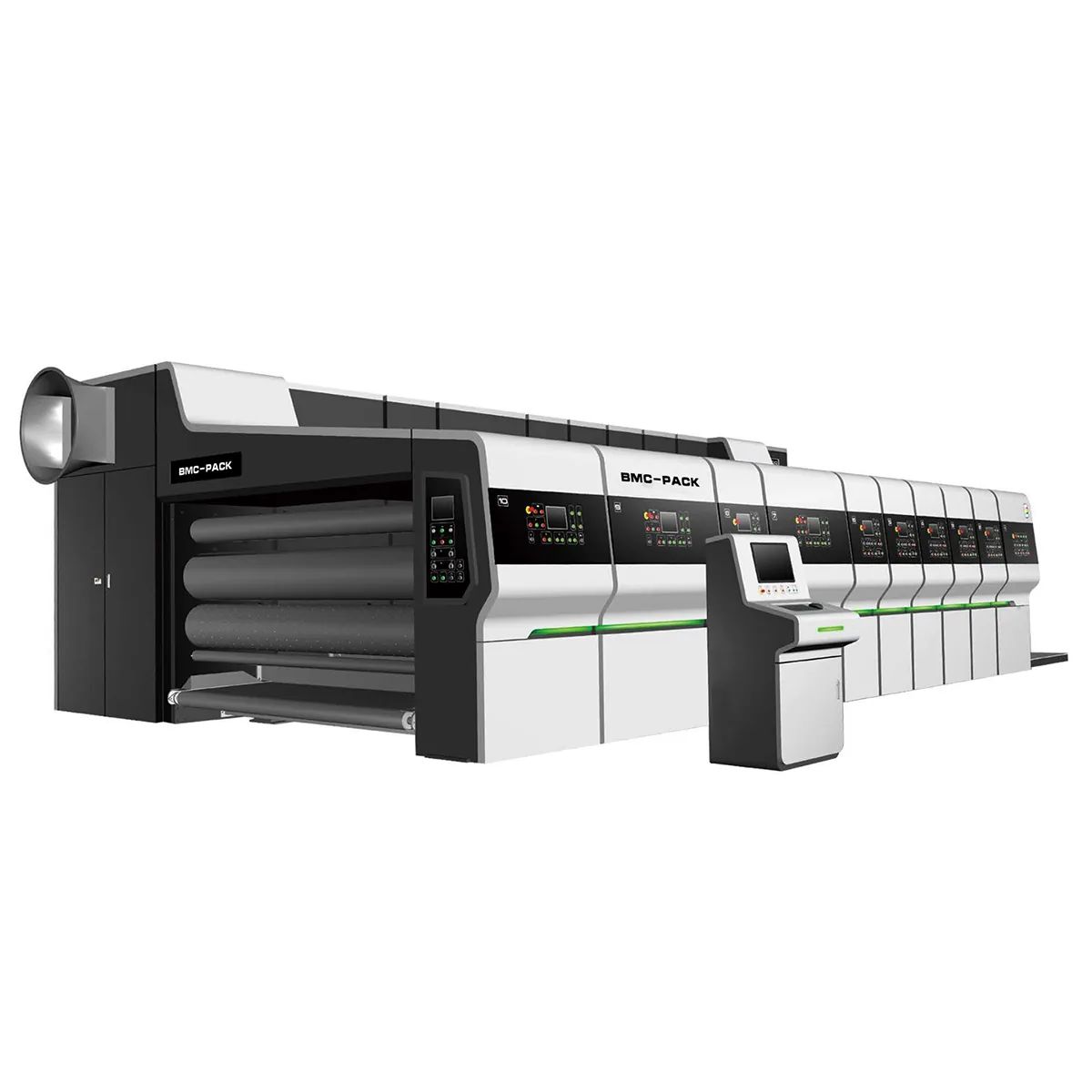

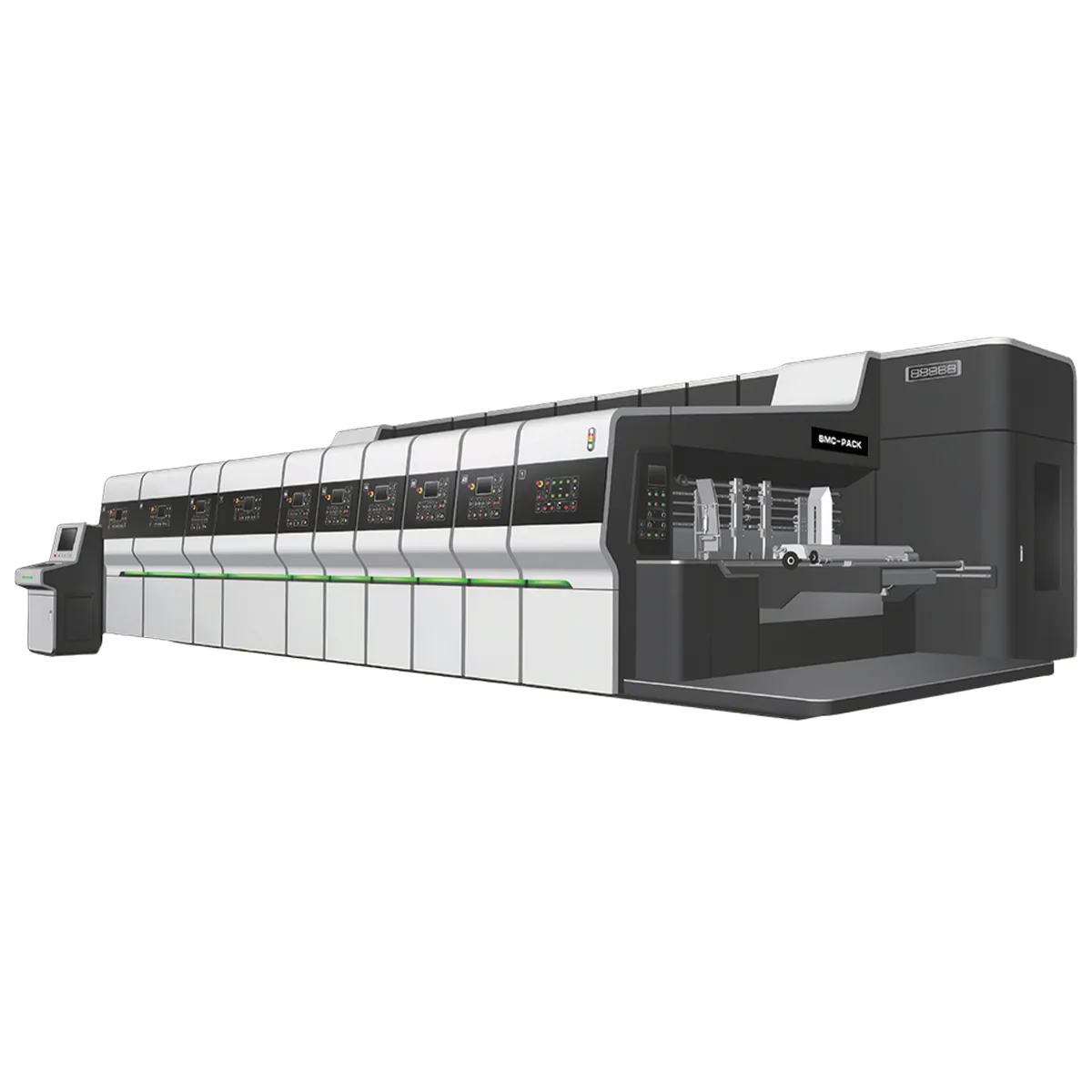

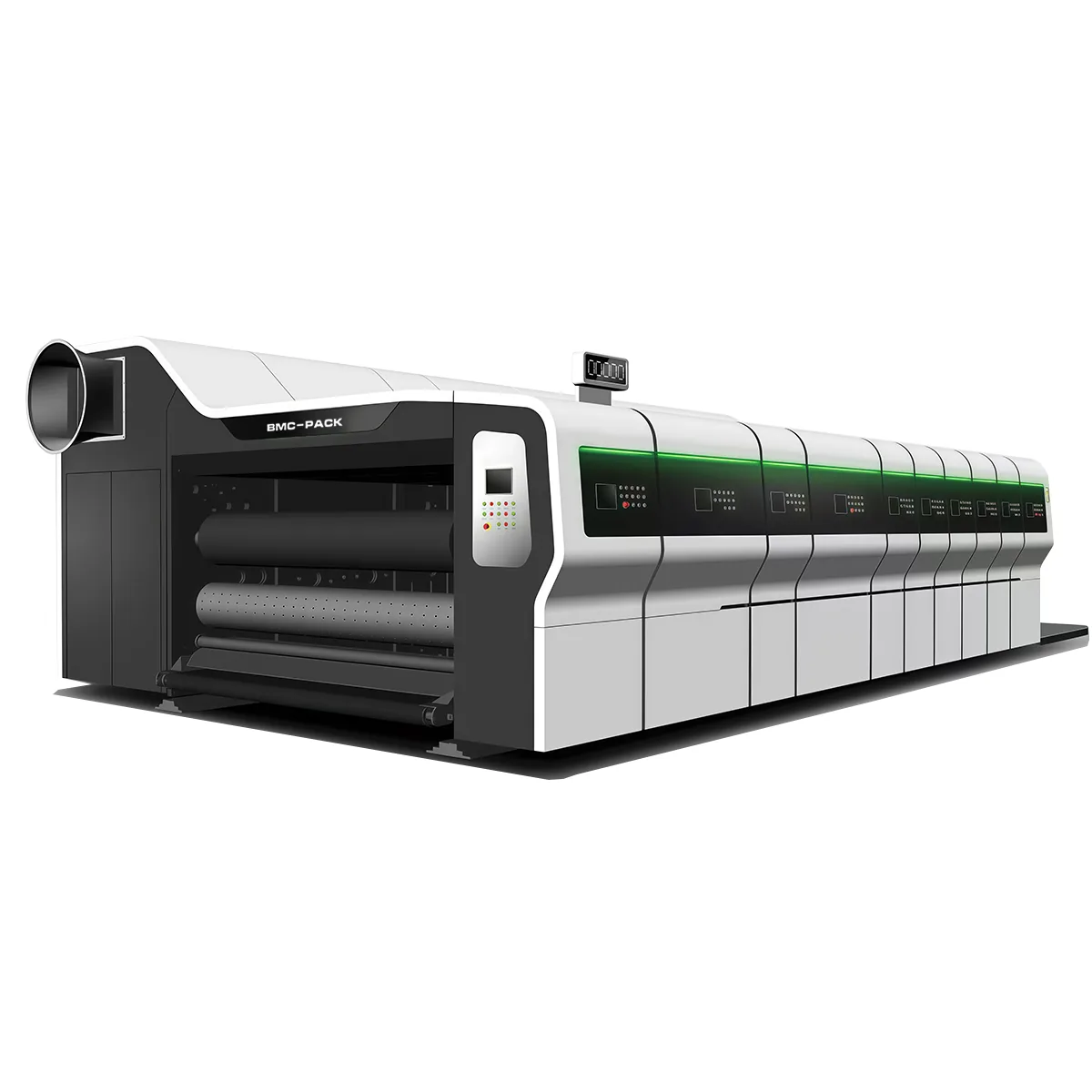

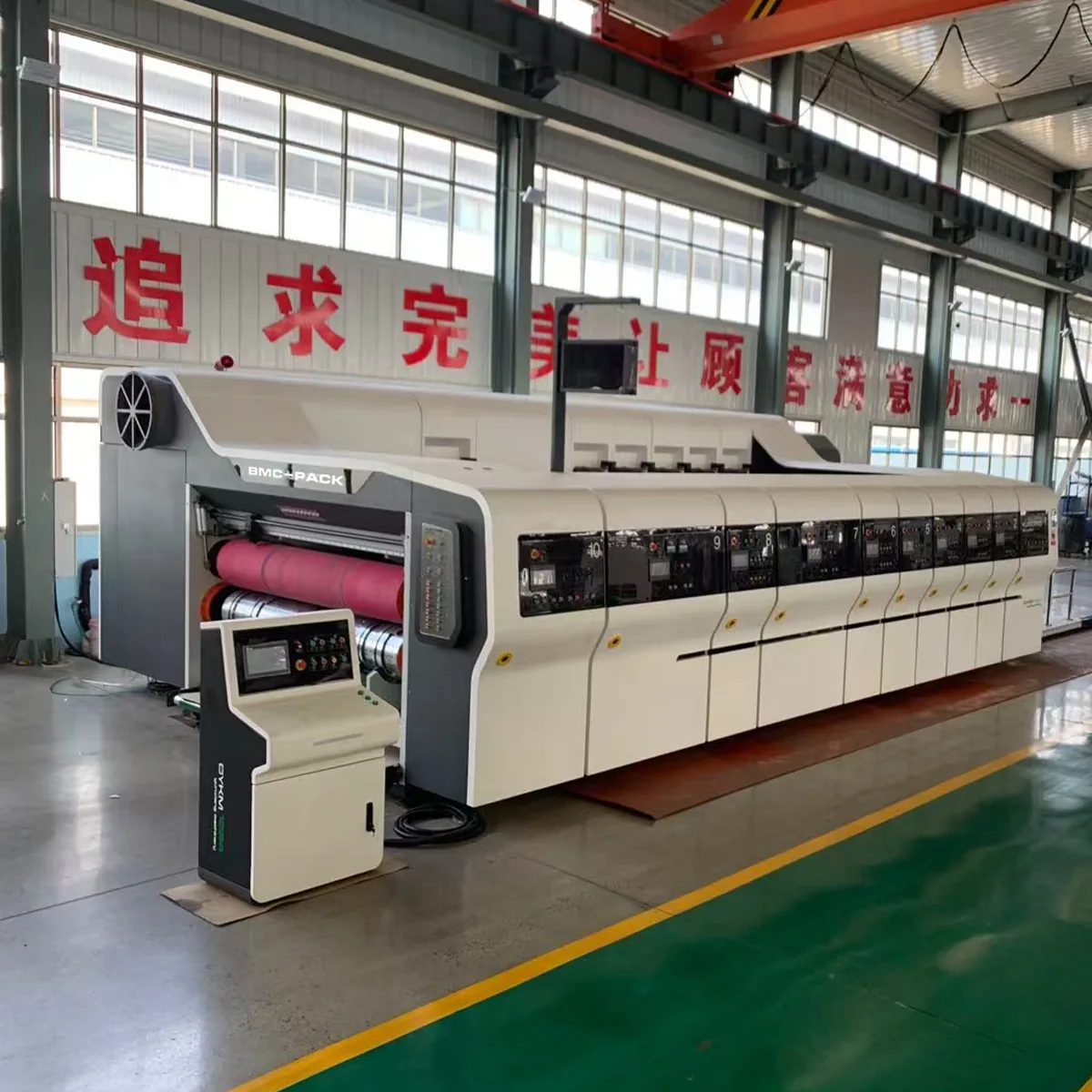

The HD machine integrates a full processing sequence β Feeding β Dust Removal β Printing β Pre-drying β Coating β Drying β Slotting β Die Cutting β Gluing β Case Making β in a single line. It uses French Schneider Electric components, German Siemens motors, Taiwan high-speed gears, and Japanese precision bearings, targeting customers who need superior print quality and a complete inline box solution at 300 pcs/min working speed.

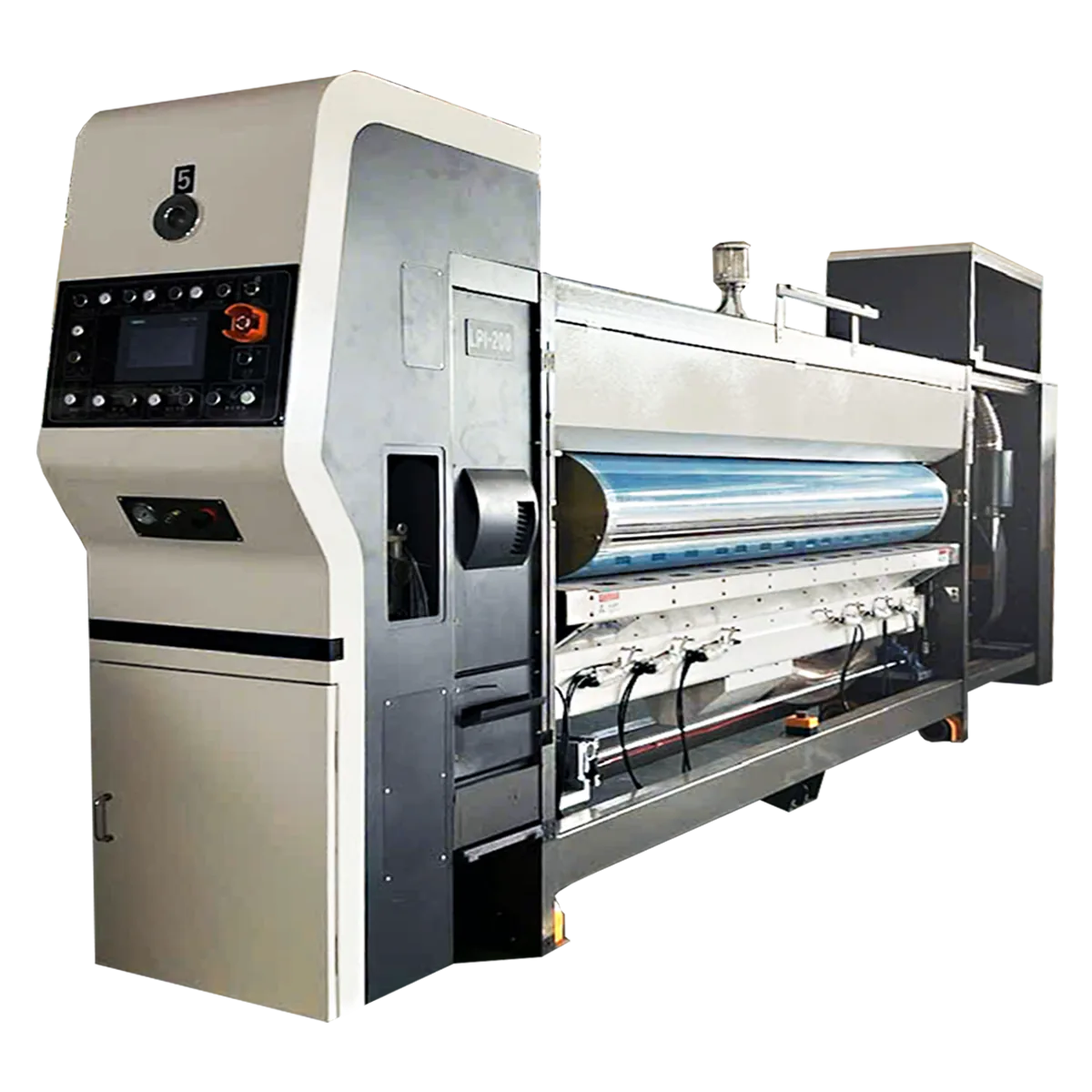

Print precision is Β±0.3 mm β significantly tighter than standard flexo SDC machines (typically β€Β±1.5 mm). This is achieved through ceramic anilox rollers, servo-driven phase adjustment, and a reinforced frame with gear-driven rigid connections that minimise vibration at high speeds.
The HD machine handles corrugated board from 1 mm to 12 mm, with a wall board frame thickness of 60 mm. This covers single-wall B/C/E flute through heavy double-wall BC grade, making it suitable for a wide range of packaging applications from food and retail to industrial shipping cartons.
The patented automatic feeding-width adjustment system, combined with servo-driven phase control on all units, allows rapid job changeovers without stopping the line. The 4.0 industrial engineering design integrates software and hardware so order parameters can be recalled and set digitally from the touch screen control panel.
Yes β installation, commissioning and operator training are included with every machine. Our engineers remain on-site until the line reaches target output, with ongoing after-sales support and spare parts available globally.
