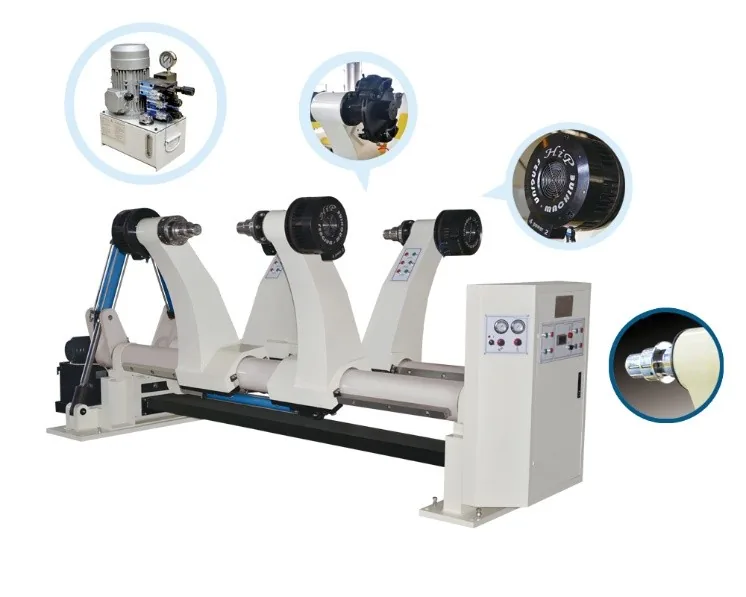

| Specification | NDRS-V5B-280/320 |
|---|---|
| Lifting mechanism | Hydraulic |
| Maximum load per side | 5000 kg |
| Clamping width range | Max: 1800 mm / Min: 900 mm |
| Roll diameter range | Max: β1500 mm / Min: β350 mm |
| Main shaft diameter | β30 mm |
| Stand main bearing diameter | β210 mm |
| Working air pressure | 0.6β0.9 MPa |
| Power supply | 380V / 50Hz |
| Machine weight | Approx. 2500 kg |
| Hydraulic working pressure | 8β12 MPa |
| Swing cylinder | β100mm Γ 460mm stroke |
| Clamping cylinder | β63mm Γ 670mm stroke |
| Hydraulic station motor power | 4 kW β 380V β 50Hz |
| Solenoid valve voltage | 220V β 50Hz |
The stand accepts a roll diameter of up to β1500mm (minimum β350mm), a clamping width of 900β1800mm, and a maximum load of 5000kg per side.
Yes. Each shaftless lifting stand is equipped with two paper pushers ("turtles") on both sides, allowing cardboard to be fed simultaneously and reducing downtime during roll changeovers.
Clamping, releasing, centering and lateral movement of the raw cardboard roll are all performed via hydraulic transmission, at a working pressure of 8β12 MPa from a 4kW hydraulic station.
Dual-stage tooth-type clamping heads with a 3/4 inch clamp head size are standard; tooth-type or expanding-type heads are available as an option.
Yes β installation, commissioning and operator training are included with every machine, with after-sales support available.
