| Specification | NDSA-3200DSM |
|---|---|
| Max (A + B) Γ 2 | 3200 mm |
| Min (A + B) Γ 2 | 1100 mm |
| Max A | 1400 mm |
| Min A | 350 mm |
| Min B | 200 mm |
| Min (C + D + C) | 300 mm |
| Total Power | 6 kW |
| Nail Distance | 30β120 mm |
| Machine Speed | 500β600 nails/min |
| Wire Model | 17β18 |
| Nail Number | 2β99 |
| Servo AC Drive | Mitsubishi Japan |
| Servo Motor | Mitsubishi Japan |
| PLC | OMRON Japan |
| Start Method | Sensor or foot switch |
| Speed | 500β600 Nails/min |
| Stitching Head | Zhuhai |
| Precision | 1 mm |
| Weight | 3500 kg |
The NDSA-3200DSM handles a maximum (A+B)Γ2 of 3200mm down to a minimum of 1100mm, with max A of 1400mm and min A of 350mm, covering a wide range of double-piece carton box sizes.
It stitches at 500β600 nails/min with a nail distance range of 30β120mm and a nail count of 2β99 per box, giving flexibility for different box specifications.

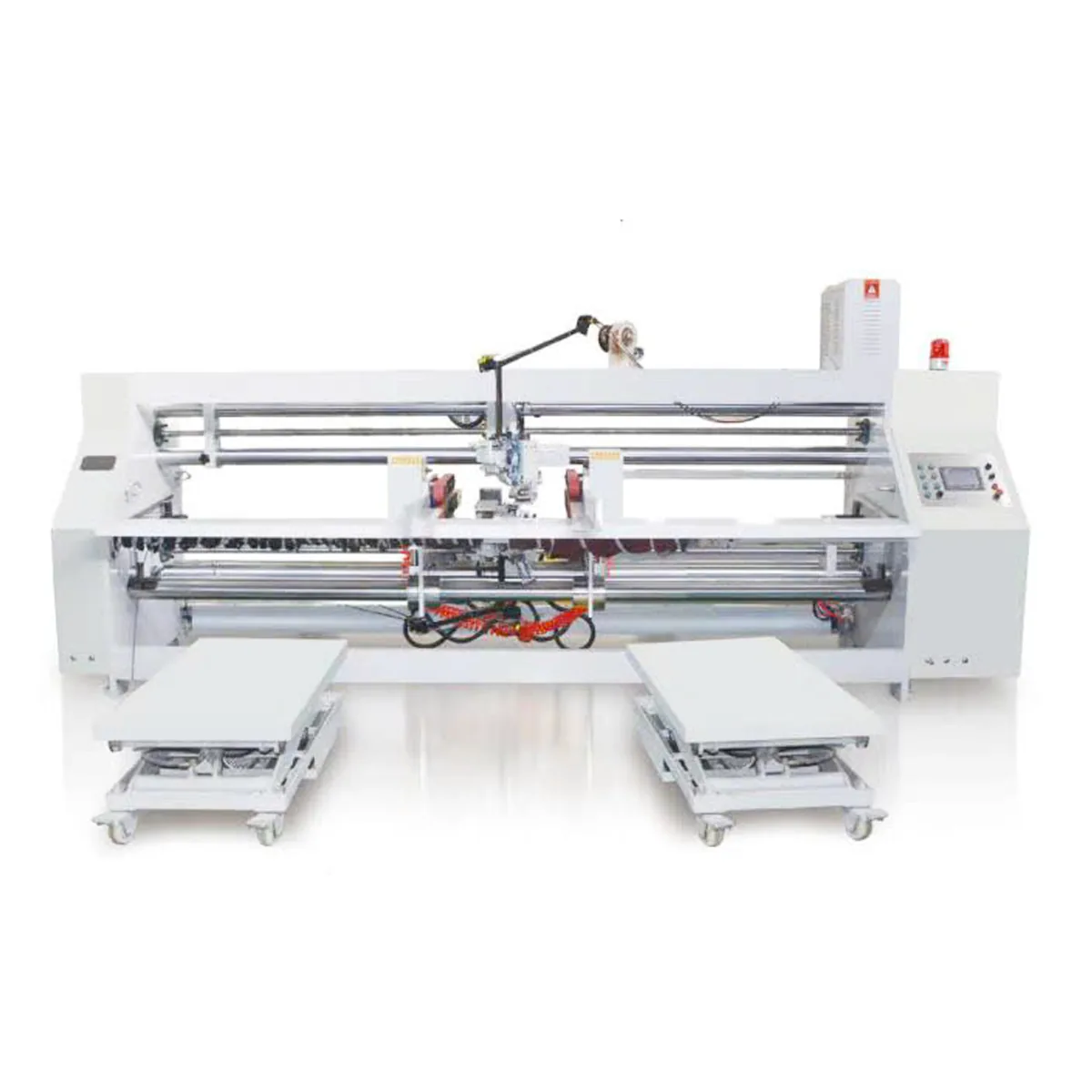

This model is built to join two carton sections together in a single nailing operation β supporting single, double, and reinforced nailing patterns for two-piece corrugated box assembly.
It runs on a Mitsubishi Japan servo AC drive and servo motor, an OMRON Japan PLC, and a Zhuhai stitching head, with a total power of 6kW and stitching precision of 1mm, started by sensor or foot switch.
Yes β installation, commissioning and operator training are included with every machine, with after-sales support available.
Tell us your requirements and our engineers will send specifications and a tailored quote.
